Product Technical Parameter

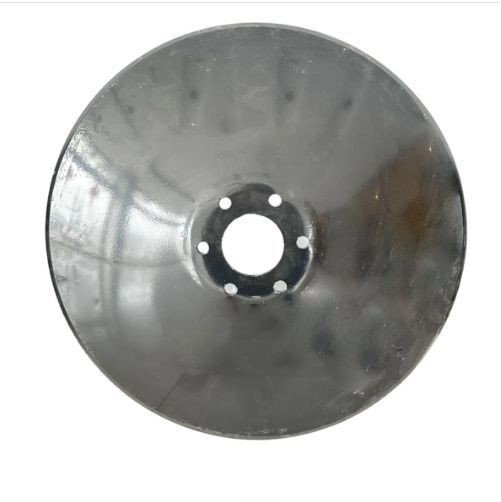

Name:Heat Treatment Disc Blade Agricultural Machinery Parts High Hardness Disc Plough
Disc blade is widely used in disc plough, disc harrow on the most important wear parts. we disc blade are exported to the United States, Canada, Russia, South Africa, Southeast Asia and other countries every year, with an annual export of 1 million pieces. has more than 20 years of production experience, helping customers in various regions to open up better markets.
Thanks to the use of China's best steel Anshan steel and Lingyuan steel, we ensure that the quality of our disks is better and the service life is longer, up to 2-3 years.
| Material | 65Mn,Boron steel |
| Hardness: | HRC38-45, HRC43-48 |
| Thickness: | 3.0-12.5mm |
| Size/dimension: | 12"-44"(300mm-1120mm) |
| Edge of Disc Blade: | Round or Notched. |
| Shape: | Flat,Concave or Wavy |
| MOQ: | 100 pcs |
| Production Capacity: | 7 Million pcs annually |
| Surface treatment: | Painting |
| Colors: | Blue or black ( matt or bright), Made to your order |
| Hole Type: | Square, Round, Hexagon, Clover Leaf, Optional |
| Hole Size: | 27x27mm, 42x42mm, optional |
| Working Depth: | 200mm, 300mm |
| Working Width: | 3.4M ~ 6.2M |
| Packing: | Non-fumigation wooden case, metal case according policy of different regions |
| Feature /Characteristic: | Highest wear life due to special edge making process |
| Common Specifications of Disc |
| Dia. | Concavity | Thickness |
| mm | inch | mm | mm |
| 255 | 10 | 12 | 3 |
| 305 | 12 | 19 | 3 |
| 330 | 13 | 25 | 3 |
| 355 | 14 | 38 | 3 |
| 410 | 15 | 38~50 | 3 |
| 430 | 17 | 57 | 3,4 |
| 460 | 18 | 38~60 | 3,4 |
| 480 | 19 | 57 | 3,4 |
| 510 | 20 | 44~63 | 3,4,5 |
| 535 | 21 | 63 | 3,4,5 |
| 560 | 22 | 60~85 | 4,5,6 |
| 585 | 23 | 75~90 | 4,5.6 |
| 610 | 24 | 75~95 | 4,5,6 |
| 660 | 26 | 86~115 | 5,6,7,8 |
| 710 | 28 | 100~130 | 5,6,7,8 |
| 760 | 30 | 120~135 | 6,7,8,10,12 |
| 810 | 32 | 120~140 | 8,10,12 |
| 910 | 36 | 120-200 | 8,10,12 |
| 960 | 38 | 120-200 | 8,10,12 |
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers. 1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .
2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
3,We can also provide training services to different users.
